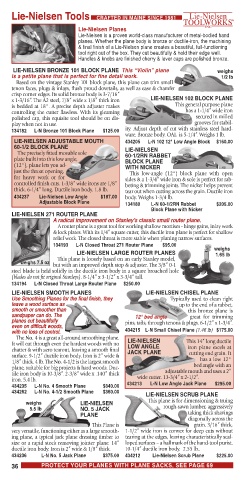

Page 36 - Highland Woodworking Tool Catalog

Lie-Nielsen Tools CRAFTED IN MAINE SINCE 1981 Lie-Nielsen
TOOLWORKS ®
Lie-Nielsen Planes INC.
Lie-Nielsen is a proven world-class manufacturer of metal-bodied hand
planes. Whether the plane body is bronze or ductile-iron, the machining
& final finish of a Lie-Nielsen plane creates a beautiful, full-functioning
tool right out of the box. They cut beautifully & hold their edge well.
Handles & knobs are finished cherry & lever caps are polished bronze.
LIE-NIELSEN BRONZE 101 BLOCK PLANE This “Violin” plane weighs
is a petite plane that is perfect for fine detail work. 1/2 lb
Based on the vintage Stanley 101 block plane, this plane can trim small
tenon faces, plugs & inlays, flush proud dovetails, as well as ease & chamfer
crisp corner edges. Its solid bronze body is 3-7/16”
x 1-3/16”. The A2 steel, 7/8” wide x 1/8” thick iron LIE-NIELSEN 102 BLOCK PLANE
is bedded at 18°. A precise depth adjuster makes This general purpose plane
controlling the cutter flawless. With its gleaming has a 1-1/4” wide iron
polished cap, this equisite tool should be on dis- secured in milled
play when not in use. grooves for stabil-
134182 L-N Bronze 101 Block Plane $125.00 ity. Adjust depth of cut with stainless steel hard-
ware. Bronze body. OAL is 5-1/4”. Weighs 1 lb.
LIE-NIELSEN ADJUSTABLE MOUTH 434205 L-N 102 12° Low Angle Block $160.00
60-1/2 BLOCK PLANE LIE-NIELSEN
The precisely fitted movable sole
plate built into this low angle, 60-1/2RN RABBET
BLOCK PLANE
(12°), plane lets you ad- WITH NICKER
just the throat opening, This low-angle (12°) block plane with open
for heavy work or for sides & a 1-3/4” wide iron & sole is perfect for rab-
controlled finish cuts. 1-3/8” wide irons are 1/8” beting & trimming joints. The nicker helps prevent
thick. 6-1/4” long. Ductile iron body. 1.8 lb. tear out when cutting across the grain. Ductile iron
434237 Lie-Nielsen Low Angle $187.00 body. Weighs 1-3/4 lb.
Adjustable Block Plane
134180 L-N 60-1/2RN Rabbet $205.00
Block Plane with Nicker
LIE-NIELSEN 271 ROUTER PLANE
A radical improvement on Stanley’s classic small router plane.
A router plane is a great tool for working shallow mortises - hinge gains, inlay work
& lock plates. With its 1/4” square cutter, this ductile iron plane is perfect for shallow
relief work. The closed throat is more stable when planing narrow surfaces.
134193 L-N Closed Throat 271 Router Plane $95.00
weighs
LIE-NIELSEN LARGE ROUTER PLANES 1.65 lb
This plane is loosely based on an early Stanley model,
weighs 7.5 oz but with an improved depth stop & adjuster. The 3/8” 0-1
steel blade is held solidly in the ductile iron body in a square broached hole
(blades do not fit original Stanleys). 8-1/4” x 3-1/2” x 3-3/4” tall.
134194 L-N Closed Throat Large Router Plane $250.00
LIE-NIELSEN SMOOTH PLANES LIE-NIELSEN CHISEL PLANE
Use Smoothing Planes for the final finish, they Typically used to clean right
leave a wood surface as up to the end of a rabbet,
smooth or smoother than this bronze plane is
sandpaper can do. The 12° bed angle great for trimming
planes cut beautifully pins, tails, through tenons & plugs. 6-1/2” x 1-3/4”.
even on difficult woods,
with no loss of control. 434215 L-N Small Chisel Plane (1.46 lb) $175.00
The No. 4 is a great all-around smoothing plane.
It will cut through even the hardest woods with no LIE-NIELSEN This 14” long ductile
chatter & with zero tearout, leaving a smooth final LOW ANGLE iron plane excels at
surface. 9-1/2” ductile iron body. Iron is 2” wide & JACK PLANE cutting end grain. It
1/8” thick. 4 lb. The No. 4-1/2 is the largest smooth has a low 12°
plane, suitable for big projects & hard woods. Duc- bed angle with an
tile iron body is 10-3/8”. 2-3/8” wide x .140” thick adjustable mouth and uses a 2”
iron. 5.4 lb. wide cutter. 13-3/4” x 2-1/2”.
434213 L-N Low Angle Jack Plane $295.00
434235 L-N No. 4 Smooth Plane $340.00
434262 L-N No. 4-1/2 Smooth Plane $360.00
LIE-NIELSEN SCRUB PLANE
This plane is for dimensioning & truing
weighs LIE-NIELSEN
5.5 lb NO. 5 JACK rough-sawn lumber, aggressively
taking thick shavings
PLANE
diagonally across the
This Plane is grain. 3/16” thick,
very versatile, functioning either as a large smooth- 1-1/2” wide iron is convex for deep cuts without
ing plane, a typical jack plane dressing timber to tearing at the edges, leaving characteristically scal-
size or a rapid stock removing jointer plane. 14” loped surfaces – a hallmark of the hand-tool purist.
ductile iron body. Iron is 2” wide & 1/8” thick. 10-1/4” ductile iron body. 2.55 lb..
434236 L-N No. 5 Jack Plane $375.00 434212 Lie-Nielsen Scrub Plane $225.00
36 PROTECT YOUR PLANES WITH PLANE SACKS, SEE PAGE 69
